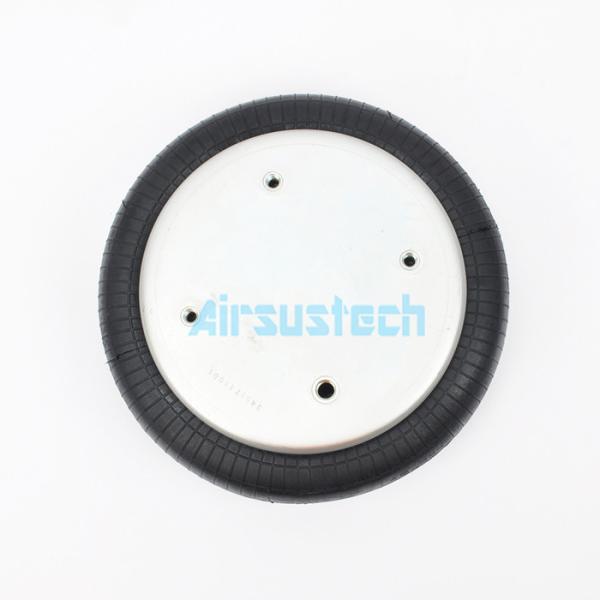

Firestone W01-358-7094 WO13587094 Single Convoluted Rubber Bumper Air Spring
Product Info.
Type: One convoluted air spring
Condition: 100% New
Warranty: One year
Delivery time: 3 business days if we have stocks
Origin: Guangdong, China
Ship from: Guangzhou, Guangdong, China
Ship to: Worldwide
Ship ways: By sea, by train, by express or as customer's requirements
Cross Reference
Mfr Part # W013587094
Part # Variations: W01-358-7094, WO13587094, WO1-358-7094, W01 358 7094, WO1 358 7094
113B1 Style AirSpring
| Description | Assembly Order |
| Blind nuts, 1/4 NPT | WO1-358-7091 |
| Blind nuts, 3/4 NPT | WO1-358-7092 |
| Blind nuts, 3/4 NPT, rubber bumper | WO1-358-7094 |
| Countersunk steel bead rings, 1 3/4 bolts, nuts, washers | WO1-358-7277 |
| Rubber bellows only | WO1-358-0150 |
Specifications and Detailed Technical Parameters
Type 2 Bead Plate,
4pcs × 3/8-16 Blind Nuts On 158.8mm Centers on top plate,
4pcs × 3/8-16 Blind Nuts On 158.8mm Centers on bottom plate
3/4" NPT Offset Port,
68mm Min. Height
140mm Max. Height
386mm Max. Rubber Bellow Diameter
289mm Top Cover Plate Diameter
289mm Bottom Plate Diameter
Rubber Bumper
No Girdle hoop
Air Spring Components
Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
Bellows: The physical, multi-layer material withholding the compressed gas.
Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.
Applications
Vibration isolator
Press machines
Conveyors
Industrial actuator
Lifts
Packaging machines
Textile machinery
Paper machine
Features
Two-ply, fabric-reinforced rubber
Flexible media
Provides linear and angular motion
Reduces harmful effects of vibration
Advantages
First, the performance is good, which can effectively limit the amplitude, reduce vibration and prevent shock at the same time.
Second, the damping equipment mainly uses air as the medium, so it is easy to control the equipment
Third, different loads will have different vibration isolation effects
Fourth, the stiffness of the equipment is adjustable to a certain extent, and the stiffness of the equipment can be changed according to the air pressure
Fifth, absorb high-frequency vibrations and effectively perform sound insulation
Sixth, air spring equipment is light in weight, much lighter than steel springs
Product Drawing
Product Tags:
|
|
Single Convoluted Rubber Bumper Air Spring Firestone W01-358-7094 WO13587094 Images
|
