M8 Teeth Contitech FS200-10 Leveling Air Bags One Convoluted Air Spring
OEM NO.
Firestone W01-M58-6374
Firestone W01M586374
Firestone W01 M58 6374
Firestone WO1M586374
Firestone WO1-M58-6374
Firestone WO1 M58 6374
Contitech FS 200-10
Contitech FS200-10
Contitech FS 200 10
Contitech FS200 10
Contitech FS 20010
Contitech FS20010
Phoenix SP 1B 12
Phoenix SP1B 12
Phoenix SP1B12
Dunlop(FR) 9''1/4×1 S09 10 1
Dunlop(FR) 9''1/4×1S09 10 1
Dunlop(FR) 9''1/4×1S0910 1
Dunlop(FR) 9''1/4×1S09101
Bosch 822419004
Festo EB-250-85
Festo EB 250 85
Festo EB250-85
Festo EB25085
Norgren PM/31091(81/4×1)
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B6374
Top plate screw (nut) teeth:2XM8×1.25
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate:2XM8×1.25
The screw center distance of the bottom cover plate: 89 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: G3/4
The screw center distance between the air hole and the nut: 38mm
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
Rubber bellows diameter: 222 mm
Height: 110mm
- Bumper block/bumper block
No bumper block
With belt loop: No belt loop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.3kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 110mm, minimum 90mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 5.5 | 7.5 | 9.6 | 11.9 | 14.0 | 15.7 | 2.7 |
| Spring rate [N/cm] | 1500 | 2050 | 2600 | 3150 | 3700 | 4250 |
| Natural frequency [Hz] | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 120 | 4.5 | 6.2 | 8.2 | 10.4 | 12.1 | 13.8 | 2.8 |
| 110 | 5.5 | 7.5 | 9.6 | 11.9 | 14.0 | 15.7 | 2.7 |
| 100 | 6.3 | 8.6 | 11.0 | 13.4 | 15.5 | 17.5 | 2.3 |
| 90 | 7.0 | 9.4 | 12.1 | 14.6 | 17.0 | 19.2 | 2.2 |
| 80 | 7.6 | 10.2 | 13.0 | 15.7 | 18.2 | 20.6 | 1.8 |
| 70 | 8.1 | 10.9 | 13.6 | 16.5 | 19.3 | 21.9 | 1.6 |
| 60 | 8.5 | 11.3 | 14.2 | 17.1 | 20.1 | 23.0 | 1.3 |

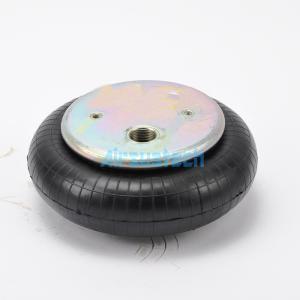

The related picture of 1B6374
Advantages
Air bag is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.
Features: The 1B6374 can replace Contitech FS200-10. The air spring is designed to maximize the carrying capacity, ride quality and stability of each vehicle. Load support is provided by air pressure, which can be adjusted for each load.
High performance: The air spring is a powerful actuator that can operate in a linear or angular manner or be stacked to provide longer travel or greater angular rotation.
High driving flexibility: Air springs can be used as load bearing parts of air suspension systems in machines, cars and buses. As a result, the vehicle remains at a fixed height regardless of the load.
Low-cost: In most cases, the initial cost of Air Spring is about 50% lower than a more traditional pneumatic or hydraulic cylinder with the same force. The bigger the size, the more you can save.
Compact starting height: Compared with the traditional cylinder, the shape of the pneumatic actuator is smaller.
Comprehensive vibration isolation effect: The body structure of the air spring is soft, so it has a comprehensive vibration isolation effect in the lateral, longitudinal and rotational directions.
Product Tags:
|
|
OEM One Convoluted Air Spring M8 Teeth Contitech FS200-10 Leveling Air Bags Images
|
