8''×3 Triple Convoluted Contitech FT 138-26 DS Industrial Suspension Air Springs
Cross Reference
Manufacturer Contitech:FT 138-26 DS
Contitech:FT 138-26 DS
Contitech:FT 138-26
Contitech:FT 138 26
Contitech:FT138-26
Contitech:FT 138-26 DS G 1/2
Contitech:FT138-26DSG1/2
Contitech:FT138-26 1/2 M10
Contitech:FT138-26 G1/2 M10
AIRSUSTECH Part Number:3B8X3
Norgren M / 31083; M 31083; M31083
Norgren Model: M/31083
Firestone part no.: W01R584056
Firestone part no.: W01 R58 4056
Firestone part no.: W0-R58-4056
Firestone part no.: WO1R584056
Firestone part no.: WO1 R58 4056
Firestone part no.: WO1-R58-4056
Firestone part no.: w01-R58-4056
Firestone part no.: w01 R58 4056
Firestone part no.: w01 R58 4056
DUNLOP PNEURIDE: 8''×3
DUNLOP SPRINGRIDE: SP2863
PARKER: 9109017
Quality assurance: one year
Packaging cartons
Specifications and Detailed Technical Parameters:8''×3
4pcs×M10screw (nut) teeth; G1/2 Air hole/air inlet; 184mm cover plate; 100mm-350mm working stroke; Two pieces of belt loop/girdle hoop
Othe Models
FT 22-6DIG1/4CR; FD44-10DICRG3/8; FS44-5DIG3/8CR; FS76-7DI; FS76-7DS; FD76-14DI ; FD76-14DSG1/2CR; FT76-20DICR;
FT76-20DSCR; FS138-8DSG1/2; FD138-18DS; FT138-26DS; FS210-10DS; FD210-22DS; FT210-32DS; FS412-10DS; FD412-22DS; FT412-32DS; FS614-13DS; FD614-26DS; FT614-36DS; FS816-15DS; FD816-30DS; FT816-40DS
| Advantages of airbags |
| 1. The elastic coefficient of spring expansion can be controlled; |
| 2. Adjustable load carrying capacity; |
| 3. Easy to achieve height control; |
| 4. Reduce friction; |
| 5. The load changes, but the natural frequency is basically unchanged |
Choosing the right rubber air spring is mainly divided into the following two situations: one is to replace the damaged rubber air spring under the existing conditions; the other is to modify the rubber air spring in order to improve the production equipment.
If it is to replace a damaged rubber air spring in existing condition, then the situation is very simple. If you are satisfied with the product, just provide us the make and model of the damaged rubber air spring. Different brands have different types of rubber air spring airbag product test reports, but they are all produced. are interchangeable with each other. If you have other needs for damaged rubber air springs, please feel free to consult us.
If it is a modified rubberized air spring to improve the production equipment, it is necessary to evaluate the production site, such as the installation space, the position used, the required stroke and the required load of the air spring.

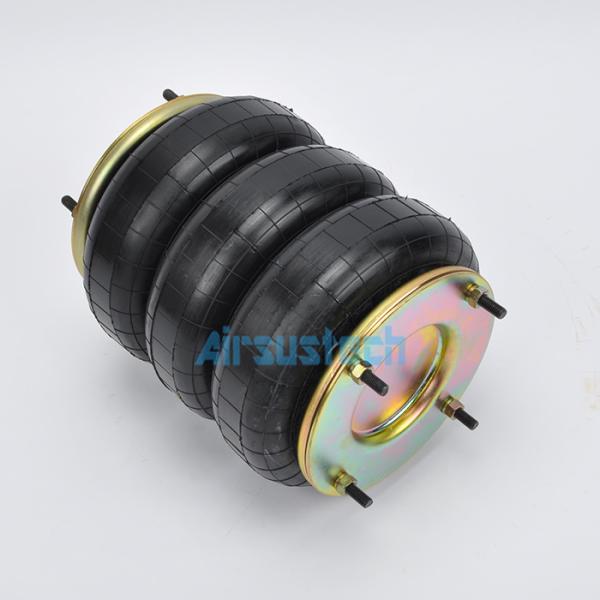

The related picture of 8×3 industrial suspension air springs
