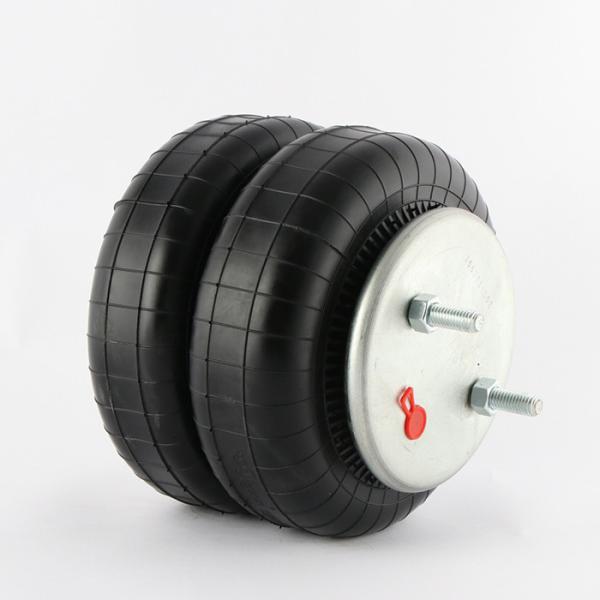

Sizes of AIRSUSTECH 2B6944 air spring:
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1⁄2-20UNF
Screw Center Distance of Top Cover Plate : 86 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1⁄2-20UNF
Screw Center Distance of Bottom Cover Plate : 89 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8 NPT
Center Distance Between Nut and Air inlet: 86 mm
Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 232.5 mm
Rubber Bellows Natural Height : 232 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B6944 Comparison number of other suppliers:
| AIRSUSTECH Part Number: 2B6944 | Goodyear UPPER MOUNTING VIEW
:ASA-92-8-176 |
| AIRSUSTECH rubber bellows 2B20F-1 | Goodyear Bellows NO.:578-92-3-211 |
| Firestone:W01-358-6944 | Goodyear LOWER MOUNTING VIEW
: ASA-92-6-108 |
| Firestone style:20-2 | Triangle: 6332/4454 |
| Contitech:FD 220-25 454 | Histeer |
| Contitech order NO.:161337 | : 10307 |
| Goodyear | Suspensions Inc. |
Goodyear Part NO. 2B9 266;2B9266 2B9-266 | Arvin meritor |
| Goodyear Bellows NO. 578923208, 578-92-3-208;578 92 3 208 | : 200118 |
| Watson&Chalin | L eland |
| ASO115G | : Sc2124 |
| Tuthill technology : 6390 | Goodyear Trimmed: 2B9253/ |
| Firestone : W01-M58-6944, | Goodyear Trimmed: 2B9-253 / |
| Firestone : W01 M58 6944, | Goodyear Trimmed: 2B9 253 |
| Firestone : W01M586944 | Goodyear Flexmember: 578-92-3-206 / |
| Firestone :20-2,20 2 | Goodyear Flexmember: 578923206 / |
| Goodyear Flexmember: 578 92 3 206 | |
CONTI
64554
FD 200-25 454
FIRESTONE
W013586944
HISTEER
10307
TRIANGLE
4454
TRP
AS69440
Granning 6390, Granning 7639, Histeer 10307, Loadguard SC2124, Suspensions, Inc. 200118, Taurus 6332, Triangle AS-4454, TRP AS69440, Watson & Chalin AS-0115 -G
Continental ContiTech FD 200-25 454, ContiTech Order # 64554, Arvin Meritor 200118, Automann SP2B12RA-6944, Firestone No. W01-358-6944, Firestone Style 20-2, FleetPride AS6944, Goodyear 2B9-252, Goodyear 2B9 -266, Goodyear Flex No. 578923206, Goodyear Flex No. 578923208,
Anther similar kind goodyear :2B9-607
Goodyear UPPER MOUNTING VIEW :ASA-92-8-270
Goodyear lower MOUNTING VIEW : ASA-92-6-010
Specifications:
Roof hole/stud: 2
Floor hole / stud: 2
Roof diameter: 6.4
Base plate diameter: 6.4
Collapsed height: 3.8
Package size and weight:
2 pieces of AIRSUSTECH Part Number: 2B6944 pack in one carton.
| Net Weight | Gross Weight | Length
(cm) | Width
(cm) | Height
(cm) | Measurememt
(cbm) |
| 3.85 | 9.9 | 24 | 24 | 24 | 0.014 |

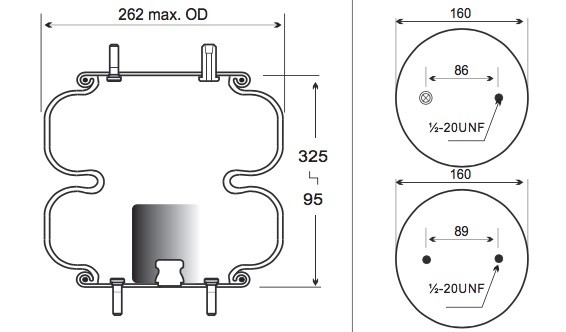

The drawing of 2B6944 air spring:
