Product Specification
| Bottom Cover Plate Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 181 mm
Bottom Plate Diameter: 210 mm
Bottom Plate Hole Quantity: 4
Bottom Plate Type: Steel |
| Top Cover Plate Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 181 mm
Top Plate Diameter: 210 mm
Top Plate Hole Quantity: 5
Top Plate Type: Steel |
| Rubber Bellow Bellow Maximum Diameter: 280 mm
Design Height: 160 mm
Expanded Height: 240 mm
Compressed Height: 70 mm
Spring Type: Double Convoluted |
| Air Hole/Air Inlet/Gas Hole Air Inlet: 1/2 BSP
Nut/Blind Nuts Type: 4×M10 |
Cross References
- Dunlop Pneuride Air Spring
10''×2, 10'×2, 10×2
W01-R58-4058, W01 R58 4058, W01R584058
WO1-R58-4058, WO1 R58 4058, WO1R584058
- Dunlop Springride Air Spring
SP 1538, SP1538
FD 210-22 DS, FD 210 22 DS, FD210-22 DS, FD210-22 DS
FD 210-22 1/2 M10, FD 210 22 1/2 M10, FD210-22 1/2 M10
M/31102, M31102, M 31102
9109021
2B-255, 2B 255, 2B255, 113100
15807
H 250-0021, H250-0021, H250 0021, H2500021
H2500189, H 2500189, H2500 189, H 2500 189
PNP 305450112
DB1028
AIRSUSTECH Air Spring Features
- Frictionless operation
- No maintenance or lubrication
- Ideal for short stroke, high-force applications
- High vibration isolation level
- Simple to install
Feedback
We will strive for excellent customer service on every order. Once you have received your product and you are satisfied with it, please leave positive feedback and we will do the same within minutes. Please do not leave Neutral or Negative without contacting us first. We will do our best to fix the problem.

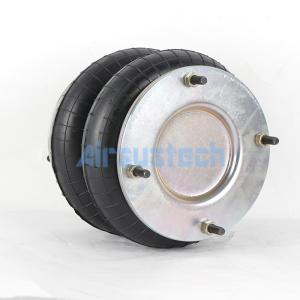

2B10×2T Related Pictures
