Continental ContiTech FS 200-10 Air Spring Assembly For Machine Reduces Vibration
Product Description
AIRSUSTECH air springs come in single, double, or triple bellow designs and serve various roles in different suspensions and applications. You'll find Continental air springs in a range of trucks, trailers, and on industrial sites. These air springs stand out for their ability to execute linear or angular movements with a much lower profile than traditional air cylinders. They are incredibly adaptable and serve a variety of functions in machinery used for pressing, tensioning, rolling, conveying, lifting, and packaging. Additionally, as vibration dampers, they effectively minimize the detrimental impact of vibration.
1B6910-3/4 Specifications
| Bottom Plate Alignment Parallel
Bottom Plate Center To Center Diameter 89 mm
Bottom Plate Diameter 160 mm
Bottom Plate Hole Quantity 2
Bottom Plate Type Steel |
| op Plate Alignment Parallel
Top Plate Center To Center Diameter 89 mm
Top Plate Diameter 160 mm
Top Plate Hole Quantity 3
Top Plate Type Steel |
| Maximum Diameter 220 mm
Design Height 110 mm
Spring Type Single Convoluted |
| Air Inlet G 3/4
Nut/Nuts Type 2×M8×1.25 |
1B6910-3/4 Other OEM Number
Firestone Air SPring: W01-M58-6374
Firestone Air SPring: W01 M58 6374
Firestone Air SPring: W01M586374
Firestone Air SPring: WO1-M58-6374
Firestone Air SPring: WO1 M58 6374
Firestone Air SPring: WO1M586374
Contitech Air Spring: FS 200-10
Contitech Air Spring: FS 200 10
Contitech Air Spring: FS20010
Phoenix Air Spring: SP 1B 12
Phoenix Air Spring: SP1B 12
Phoenix Air Spring: SP1B12
Phoenix Air Spring: SP 1B12
Dunlop(FR) Air Spring: 9 1/4x1 S09101
Bosch Air Spring: 822419004
Festo Air Spring: EB-250-85
Festo Air Spring: EB 250 85
Festo Air Spring: EB25085
Norgren Air Spring: PM/31091(8 1/4x1)
Norgren Air Spring: PM 31091(8 1/4x1)
Norgren Air Spring: PM31091(8 1/4x1)
Air Spring Should Pay Attention To In The Application
1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.

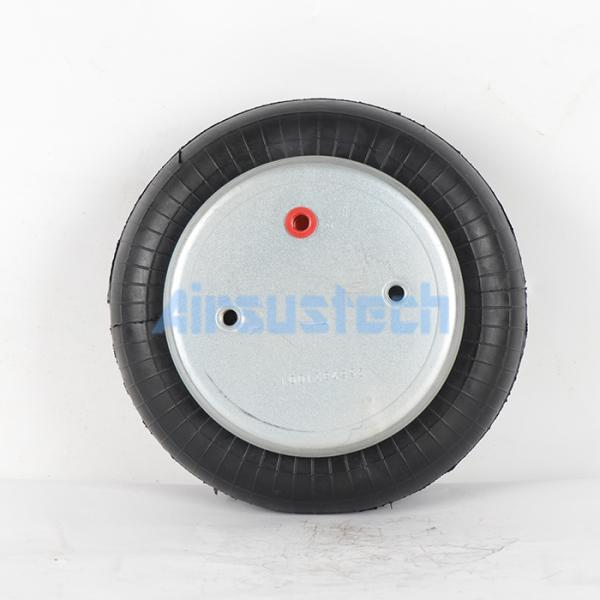

1B6910-3/4 Air Spring Pictures
