Rubber Bellow 578-91-3-201 Air Suspension Systems for Machine Reduces Vibration
Cross References
For Goodyear Rubber Bellow 578-91-3-201
For Goodyear Rubber Bellow 578 91 3 201
For Goodyear Rubber Bellow 578913201
For Goodyear Air Spring 1B9-204
For Goodyear Air Spring 1B9204
For Goodyear Air Spring 1B 9-204
For Goodyear Air Spring1B9-202
For Goodyear Air Spring1B 9-202
For Goodyear Air Spring1B9202
Product Details
| Working Stroke | 3.6 Inches |
| Minimum Height | 2.6 Inches |
| Maximum Height | 5.9 Inches |
| Max. Diameter @ 100 PSIG | 11 Inches |
| Bumper | No |
| Force at 100 PSIG at Height Limit | 1575 Pounds |
| Force at 80 PSIG at Height Limit | 1215 Pounds |
| Force at 60 PSIG at Height Limit | 875 Pounds |
| Force at 40 PSIG at Height Limit | 550 Pounds |
| Force at 100 PSIG at Compressed Height | 5625 Pounds |
| Force at 80 PSIG at Compressed Height | 4500 Pounds |
| Force at 60 PSIG at Compressed Height | 3350 Pounds |
| Force at 40 PSIG at Compressed Height | 2225 Pounds |
AIRSUSTECH Air Spring Features
1. Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.
2. Angular movement
Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.
3. Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.
We Have Other Single Convoluted Air Rubber Bellow
| 1B12-305 | FS 40-6 CI | SP2906 |
| 1B14-350 | FS 50-5 CI | SP2334 |
| 1B14-352 | FS 70-7 CI | SP2913 |
| 1B14-364 | FS 100-10 CI | SP1536 |
| 1B15-376 | FS 120-10 CI | SP1537 |
| 1B15-378 | FS 120-12 CI | SP2523 |
| 1B12-313 | FS 200-10 CI | SP1540 |
| 1B14-351 | FS 310-12 CI | SP1543 |
| 1B14-362 | FS 330-11 CI | |
| 1B15-377 | FS 330-14 CI | |
| 1B15-375 | FS 530-11 CI | |
| | FS 530-14 CI | |
| | FS 960-12 CI | |
| | FS 1330-11 CI | |

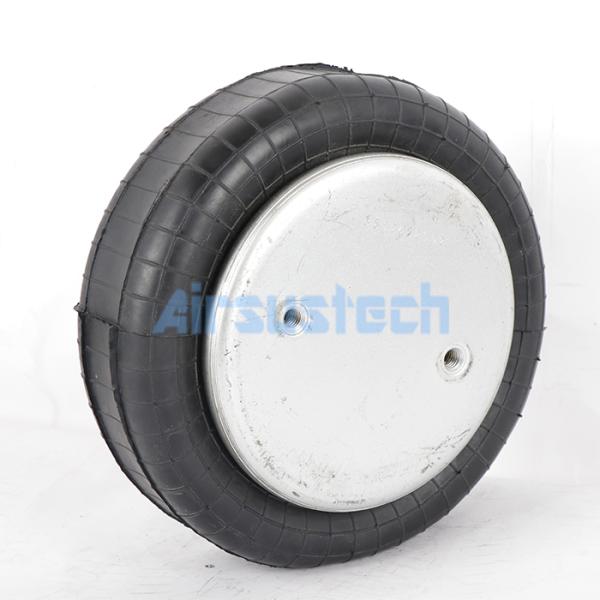

1B9×5 Pictures of Details
